A car battery that charges unusually fast, shows an acceptable resting voltage, and then collapses under load may have lost usable plate area. One possible cause is battery sulfation, a buildup of lead sulfate that becomes difficult to reverse after a lead-acid battery remains undercharged or discharged for too long.
Sulfation is often blamed for every weak battery, but slow cranking and low capacity have many possible causes. A tester can reveal poor performance; it cannot prove sulfation from one reading alone. This guide explains what sulfation is, which conditions accelerate it, how to test a suspected battery, and when charging or replacement is the more sensible next step.
What is sulfation in a lead-acid battery?
During normal discharge, lead sulfate forms on both the positive and negative plates as part of the battery's electrochemical reaction. When the battery is recharged correctly, much of that material converts back into active plate material. This reversible process is normal and is not, by itself, a failure.
The problem begins when a battery spends extended time at a partial state of charge or in a discharged condition. Lead sulfate can grow into more stable crystals that are harder for normal charging to convert. As more plate area becomes inactive, charge acceptance falls, internal resistance can rise, and the battery delivers less cranking current and reserve capacity.
Recent or “soft” sulfation may sometimes respond to a battery-manufacturer-approved recovery procedure. Long-standing, hardened sulfation may be irreversible. Plate shedding, grid corrosion, shorted cells, and other age-related damage cannot be repaired by a desulfation claim.
What causes car battery sulfation?
Storing a battery while discharged
A lead-acid battery continues to self-discharge during storage. If it is put away at a low state of charge or left for months without an appropriate maintenance charge, sulfate remains on the plates and can harden. Warm storage generally accelerates self-discharge and chemical aging.
Frequent short trips
Starting the engine removes a significant amount of energy. A short drive may not give the charging system enough time to replace it, especially when lights, climate control, heated glass, audio equipment, and vehicle electronics are operating. Repeating this pattern can keep the battery in a partial state of charge.
A parasitic electrical drain
A module that fails to sleep, an aftermarket accessory, a lamp, or a wiring fault can discharge the battery while the vehicle is parked. Recharging only enough to start the engine treats the symptom but leaves the battery vulnerable to repeated undercharge and sulfation.
Incorrect or incomplete charging
A charger with the wrong program, insufficient charging voltage, too little charging time, or poor temperature compensation may never bring the battery to the state of charge its manufacturer requires. A weak alternator, excessive cable resistance, or incorrect vehicle charging strategy can have a similar effect.
Acid stratification and low electrolyte
In serviceable flooded batteries, acid concentration can become uneven, especially with repeated partial charging. Stratification can increase sulfation in parts of the plates. If electrolyte falls below the plate tops, exposed active material can be permanently damaged. Never open, water, or equalize a sealed AGM, gel, or other valve-regulated battery.
Common signs of a sulfated battery
No single symptom confirms sulfation, but the following pattern deserves investigation:
- the engine cranks more slowly even after the battery was charged;
- the charger indicates “full” unusually quickly, but usable capacity remains low;
- resting voltage looks acceptable while voltage drops sharply under load;
- the battery repeatedly needs charging after normal use;
- measured internal resistance is elevated or measured cranking performance is reduced;
- a serviceable flooded battery has persistently low or uneven specific-gravity readings after a correct full charge;
- the battery warms excessively or accepts charge poorly during an approved recovery attempt.
These signs can also result from low state of charge, cold temperature, a weak cell, plate corrosion, loss of active material, poor terminal contact, or a vehicle fault. Diagnose the complete system before assigning the cause.
Can voltage alone detect sulfation?
No. Open-circuit voltage mainly indicates state of charge after the battery has rested under suitable conditions. A sulfated battery may develop a misleading surface voltage during charging even though it stores little usable energy. Conversely, a healthy but discharged battery can show low voltage and still recover after proper charging.
Remove surface charge and let the battery stabilize before comparing it with the battery manufacturer's voltage chart. Our article on car battery surface charge and false test results explains why a recently charged reading can be deceptive.
Voltage becomes more useful when combined with a controlled load, measured CCA or conductance, temperature, charge history, and repeatability. See battery load testing versus voltage testing for a fuller comparison.
How to test a battery for sulfation-related capacity loss
- Identify the battery. Confirm its nominal voltage, chemistry, CCA or amp-hour rating, age, and manufacturer instructions. The correct charging and test procedures differ among flooded, AGM, gel, and specialized lead-acid designs.
- Inspect it safely. Do not charge or load-test a battery that is cracked, leaking, frozen, swollen, unusually hot, or producing a strong odor. Work in a ventilated area with suitable eye and hand protection.
- Check the terminals and cables. Clean corrosion and make sure tester clamps contact the battery posts firmly. External resistance can imitate a weak battery during a load test.
- Charge it correctly. Use a compatible charger and complete the manufacturer's full charging program. Stop if the battery overheats, vents abnormally, or shows other unsafe behavior.
- Let it stabilize. Follow the specified rest or surface-charge removal procedure before measuring open-circuit voltage.
- Record resting voltage and temperature. Compare with the battery manufacturer's chart, not an unrelated generic threshold.
- Check specific gravity when appropriate. Only a serviceable flooded battery can be sampled safely with a compatible hydrometer. Never open a sealed battery.
- Run one controlled performance test. Use a compatible conductance or load tester. Enter the correct rating and battery type, or follow the fixed-load tester's scale and time limit.
- Evaluate the charging system. If the battery can be returned to service, verify that the vehicle actually reaches the charging conditions it requires.
- Confirm the trend. A fully charged battery that repeatedly shows poor loaded voltage or low measured performance may have permanent capacity loss, whether sulfation or another internal failure is responsible.
For the complete sequence, use our 12V car battery voltage and load-test guide. When interpreting a starting-battery rating, also review what CCA means during a battery load test.
What a load test can and cannot tell you
A load test asks the battery to deliver substantial current for a short, controlled period. A healthy, fully charged starting battery should maintain an acceptable voltage for the tester's specified load, time, and temperature. A battery with high internal resistance or reduced active plate area may start at a reasonable voltage and then fall quickly.
That behavior is consistent with capacity loss, but it is not a sulfation-only signature. Grid corrosion, damaged separators, poor connections, low charge, cold temperature, and other internal faults can produce a similar result. Treat the tester as evidence of performance, not as a camera that identifies the exact material on the plates.
Can a sulfated battery be recovered?
Sometimes, but expectations should be conservative. A recent undercharge condition may improve after a complete charge with the correct profile. Certain manufacturers publish a specific reconditioning procedure for particular batteries. Follow that procedure exactly, monitor temperature, and stop if the manufacturer’s limits are reached.
Equalization is not a universal cure. It is a controlled overcharge used only on compatible flooded lead-acid batteries and only when the manufacturer calls for it. It can cause vigorous gassing and heat. Applying an equalization voltage to AGM, gel, sealed, or vehicle-connected batteries without explicit approval can cause damage or create a safety hazard.
Avoid unverified additives, homemade chemical treatments, repeated high-voltage charging, or extended load cycles. If a correctly charged battery still cannot meet its performance specification, replacement and responsible recycling are usually more dependable than continued experimentation.
A practical 100A tester for workshop checks
The Platrex 100A High-Power Digital Battery Load Tester with Cooling Fan provides a fixed-load check for compatible 12V batteries. Its red LED voltage display and OK, NORMAL, and WEAK indicators support quick workshop interpretation, while active fan cooling and a ventilated steel housing help manage heat generated by the internal load.
For sulfation-related troubleshooting, the valuable result is not a label by itself. Charge and stabilize the battery first, verify clamp contact, apply the load for no more than the product's stated test interval, and compare the loaded voltage with the battery rating and temperature. This model's instructions specify an up-to-10-second load check. Allow cooling and follow all product instructions before another test.
How to reduce the risk of sulfation
- Restore a full charge after use. Do not leave the battery partially discharged for extended periods.
- Use the correct charger profile. Match voltage, chemistry, capacity, and temperature requirements.
- Maintain stored batteries. Follow the manufacturer's inspection and maintenance-charge schedule.
- Investigate repeated discharge. Find parasitic drains or charging-system faults instead of repeatedly jump-starting.
- Keep connections clean and tight. Voltage loss in cables can reduce effective charging and starting performance.
- Check flooded-battery electrolyte correctly. Maintain levels only according to the manufacturer and never expose the plates.
- Control heat. High temperature accelerates self-discharge and battery aging. Read our guide to summer heat and car battery testing.
Frequently asked questions
Does white corrosion on the terminals mean the battery is sulfated?
No. Terminal corrosion is an external connection problem, while sulfation occurs on internal plate material. They can exist together, but one does not prove the other. Clean the terminals safely and retest.
Can a sulfated battery show 12.6 volts?
Yes. A battery may show an apparently healthy open-circuit or surface voltage yet have little usable capacity. A controlled performance test after correct charging and stabilization provides more context.
Will a desulfating charger always restore the battery?
No. Results depend on battery design, the severity and duration of sulfation, and whether other damage is present. Use only a manufacturer-approved procedure for that battery.
Is equalization safe for AGM batteries?
Do not assume it is. Conventional equalization is generally associated with serviceable flooded batteries. Never apply it to AGM, gel, sealed, or vehicle-connected batteries unless the exact battery manufacturer explicitly permits and specifies the procedure.
Should I keep load-testing until the result improves?
No. Repeated load tests discharge the battery and heat the tester. One properly prepared test is more useful than several uncontrolled tests. Recharge and repeat only when the diagnostic procedure calls for it.
The bottom line
Sulfation is a gradual loss of active plate area associated with prolonged discharge, repeated partial charging, and improper storage or charging. Its symptoms overlap with many other battery and vehicle faults, so voltage alone and one tester label cannot confirm it.
Charge the battery correctly, remove surface charge, document temperature, and measure how it behaves under a controlled load. If a fully charged battery repeatedly fails to deliver its rated performance, investigate the charging system and prepare for replacement rather than relying on an unsafe universal “desulfation” cure. For repeatable 12V workshop checks, explore the Platrex 100A Digital Battery Load Tester with Cooling Fan.
Technical references: Trojan Battery Maintenance; Trojan Battery FAQs; ODYSSEY Battery Reconditioning Charge Procedure; East Penn Industrial Battery Service Manual; Discover Battery: Negative Plate Sulfation.

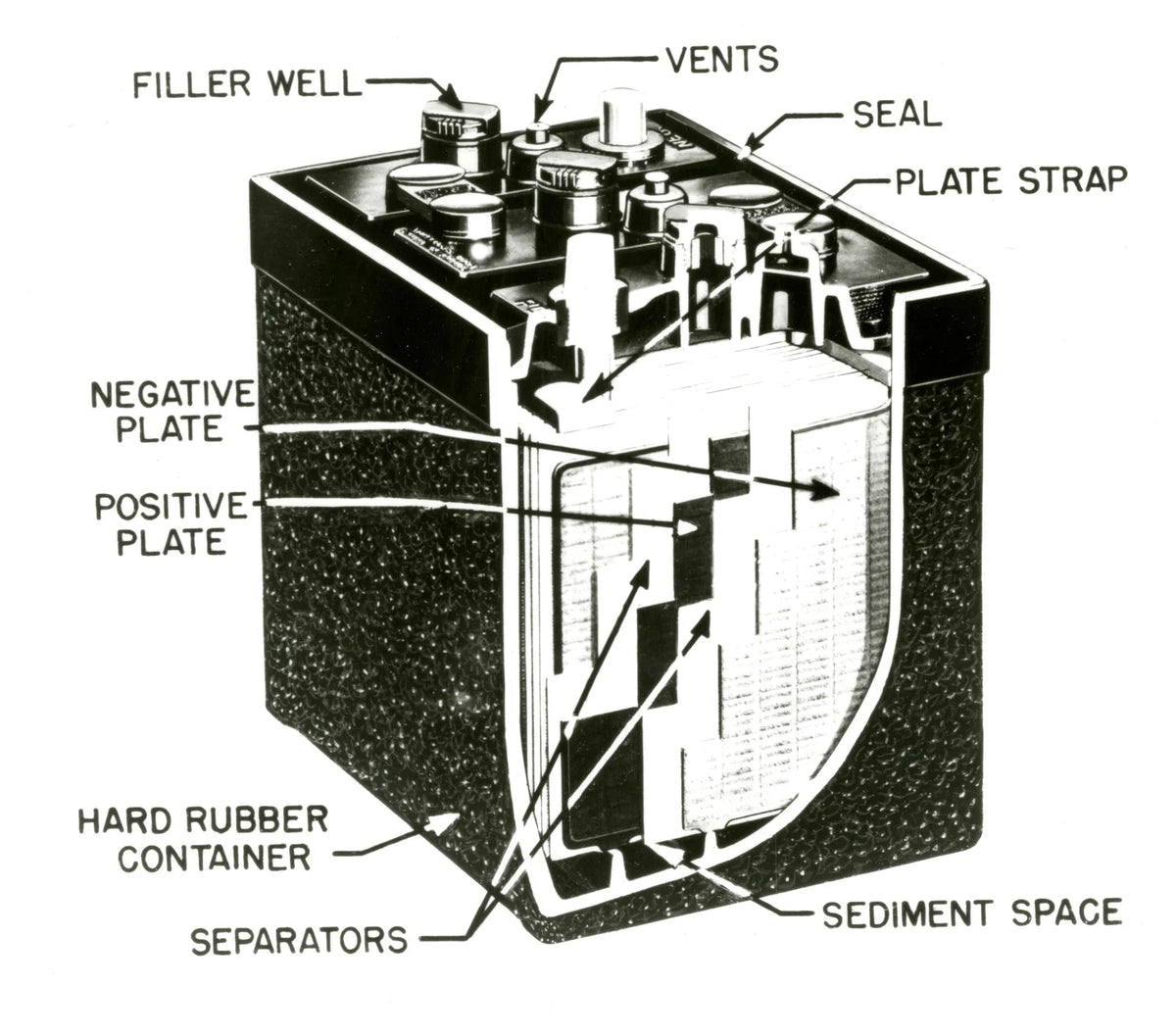

Image credits: Automotive lead-acid battery cutaway from the National Institute of Standards and Technology Digital Collections, Gaithersburg, MD 20899, public domain via Wikimedia Commons. “AGM inside” by Lukas A., CZE, released into the public domain via Wikimedia Commons. Product images courtesy of Platrex.
