100A Digital Battery Load Tester — Handheld 12V Battery Analyzer with LED Display

Fast, accurate, and built for everyday professional use — the Platrex 100A Digital Battery Load Tester puts precise battery diagnostics in the palm of your hand. With a bright red LED voltage display, a three-status indicator (OK / NORMAL / WEAK), and a built-in Starter Test reference chart, this compact handheld tester gives you everything you need to assess any 12V lead-acid battery in under 15 seconds. The stainless steel louvered housing keeps it cool under repeated testing, while the detailed rear Operation Instruction panel ensures correct use every time.

Key Features

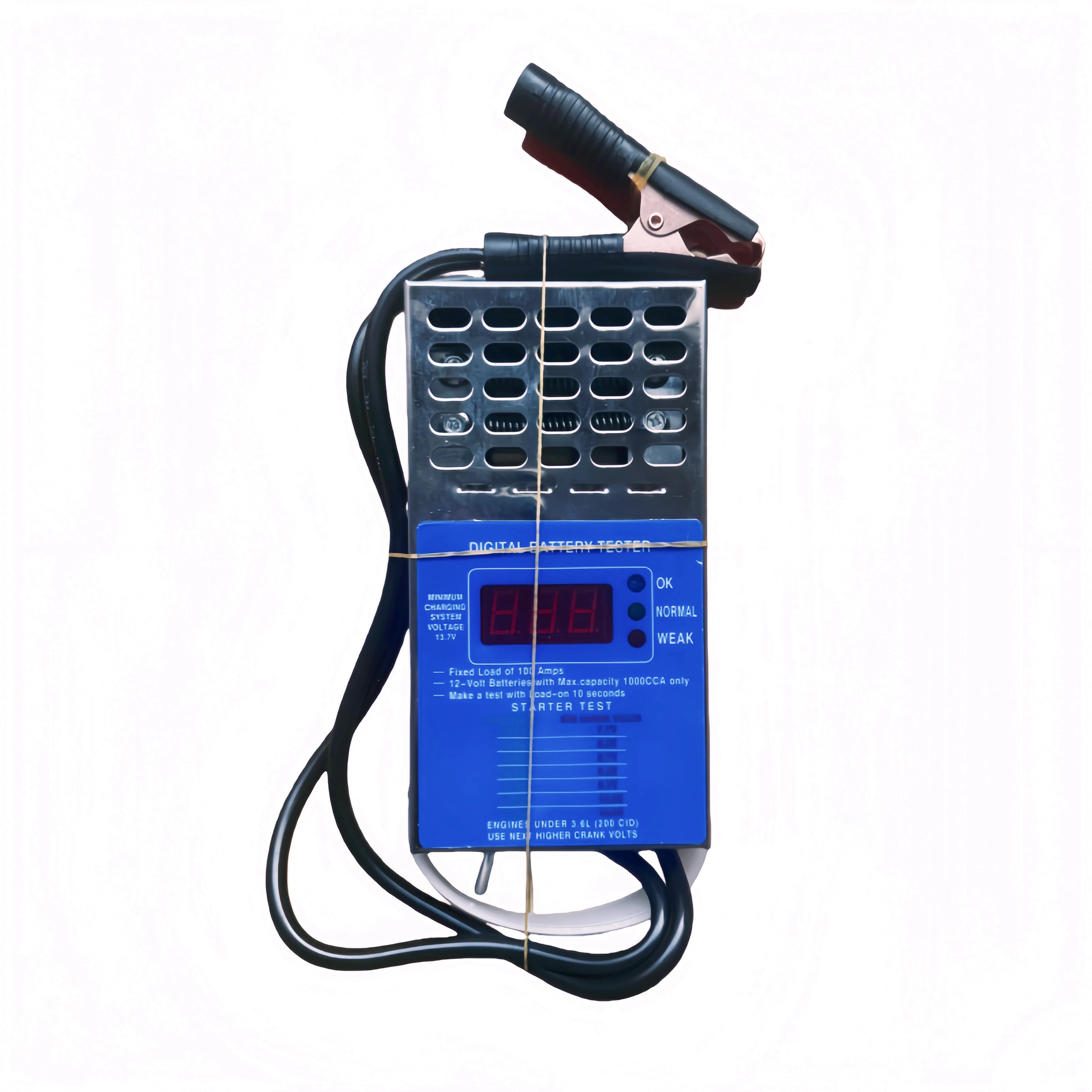

• Red LED Digital Display: Live voltage readout — bright and easy to read in any lighting condition
• 3-Status LED Indicator: OK / NORMAL / WEAK — instant, unambiguous battery condition verdict
• 100A Fixed Load: Simulates real engine cranking conditions for accurate battery health assessment

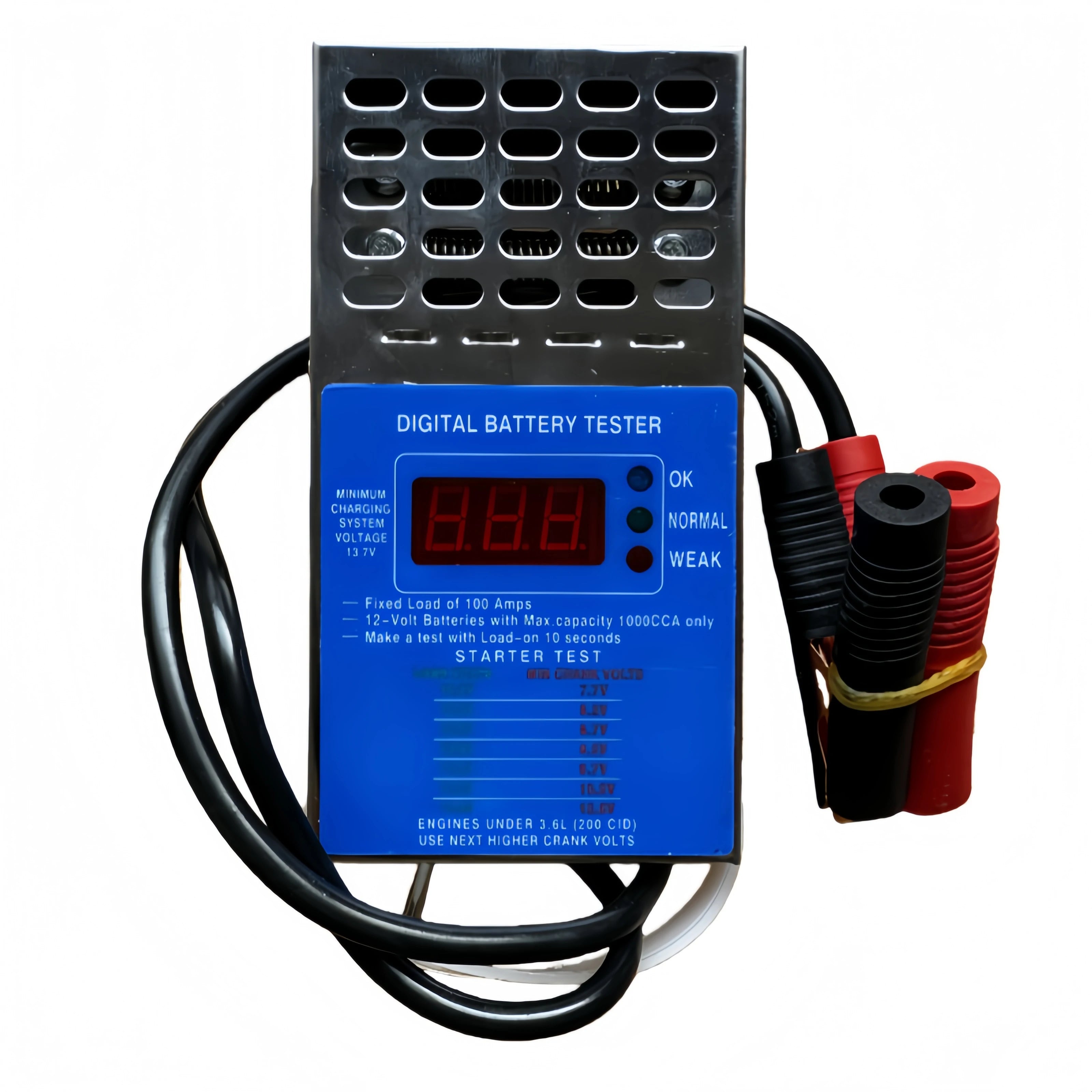

• Starter Test Reference Chart: Built-in Load Volts vs. Min Crank Volts table for engines under 3.6L (200 CID) — 200 to 1000 CCA range
• Minimum Charging System Voltage: 13.7V reference marked on panel for alternator/charging system check
• Rear Operation Instruction Panel: Full printed guide covering open-circuit voltage reading, load test procedure, and battery condition interpretation (Normal / Recharged / Discharged)

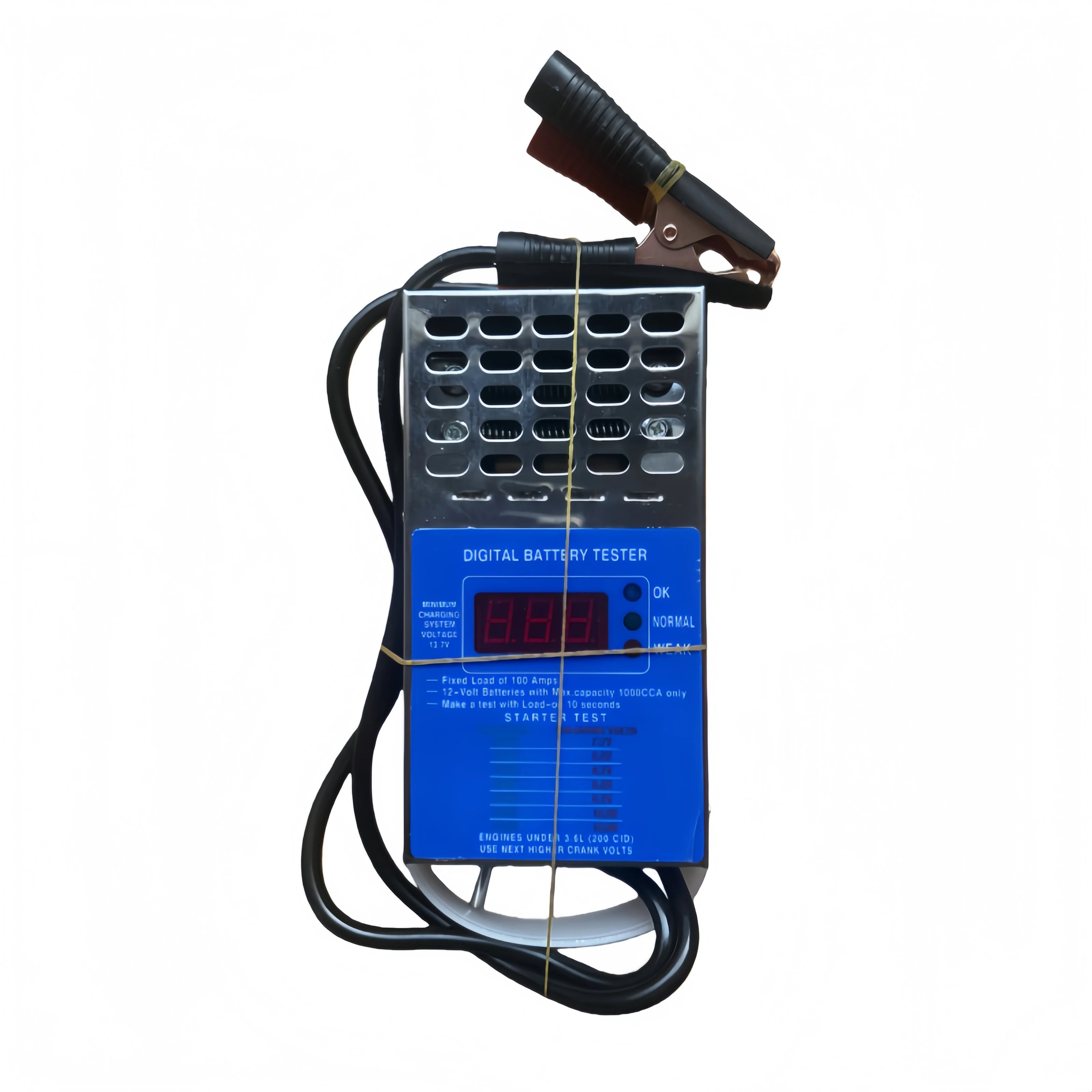

• Stainless Steel Louvered Housing: Ventilated stainless steel body for heat dissipation during sustained load testing

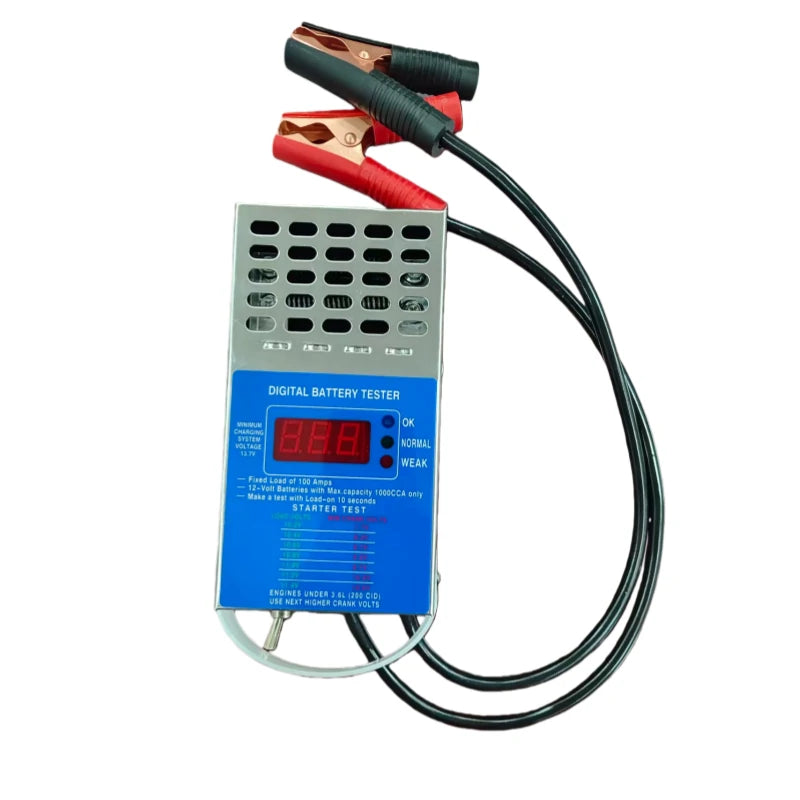

• Heavy-Duty Copper Clamps: Large copper alligator clamps with insulated red/black handles for secure, spark-free connection
• Compact & Portable: Handheld form factor — ideal for workshop bench use, roadside diagnostics, and field service
• No External Power Required: Fully passive design — powered by the battery under test

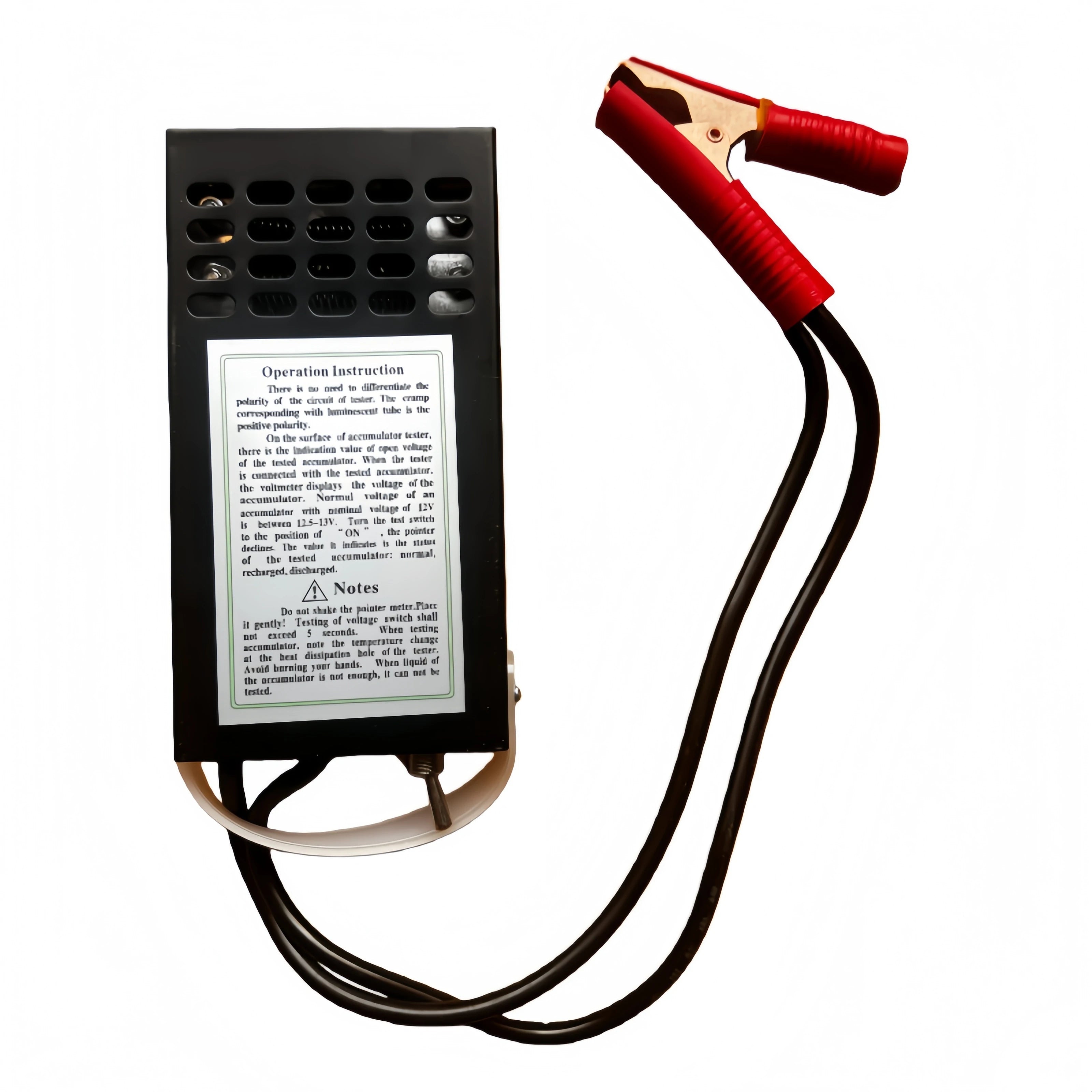

Operation Instructions (Rear Panel)

• The clamp corresponding with the luminescent tube is the positive polarity clamp
• Connect tester to battery — the voltmeter displays open-circuit voltage of the battery
• Normal voltage for a 12V battery is between 12.5–13V
• Turn the test switch to ON — the pointer/LED indicates battery status: Normal, Recharged, or Discharged
• Note: Do not hold the load switch ON for more than 5 seconds; avoid touching the heat dissipation holes during testing

Specifications

• Test Voltage: 12V
• Fixed Load: 100 Amps
• Max Battery Capacity: 1000 CCA (12V only)
• Display: Red LED digital (live voltage readout)
• Status Indicator: 3-LED (OK / NORMAL / WEAK)
• Housing: Stainless steel louvered ventilation body
• Clamps: Heavy-duty copper alligator clamps, insulated handles
• Cable: Flexible heavy-gauge copper wire
• Power Required: None (powered by battery under test)

How to Use

1. Connect clamps to battery terminals — luminescent (red) clamp to positive (+), black clamp to negative (−)
2. Read the open-circuit voltage on the LED display
3. Flip the test switch to ON and hold for up to 10 seconds
4. Read the LED display voltage and observe the OK / NORMAL / WEAK status LEDs
5. Compare Load Volts against the Starter Test chart for engine-specific diagnosis
6. Flip switch OFF and disconnect clamps

Applications

Ideal for automotive workshops, roadside assistance, car dealerships, fleet maintenance, and home garage use. Compatible with all standard 12V lead-acid batteries up to 1000 CCA, including standard flooded, AGM, and gel cell batteries.
