200A Handheld Analog Battery Load Tester | 6V 12V Battery Tester with CCA Chart

200A Handheld Analog Battery Load Tester — Professional 6V/12V Battery Analyzer with CCA Chart

Compact enough to carry to any vehicle, powerful enough to test any battery — the Platrex 200A Handheld Analog Battery Load Tester is the go-to tool for mechanics, fleet operators, and serious DIYers who need fast, reliable battery diagnostics on the go. With a 200A load capacity, a color-coded analog dial, and a built-in CCA reference chart, you get a complete battery health picture in under 15 seconds — no power source required.

Key Features

• 200A Load Capacity: High-current load test accurately simulates engine cranking conditions for true battery health assessment

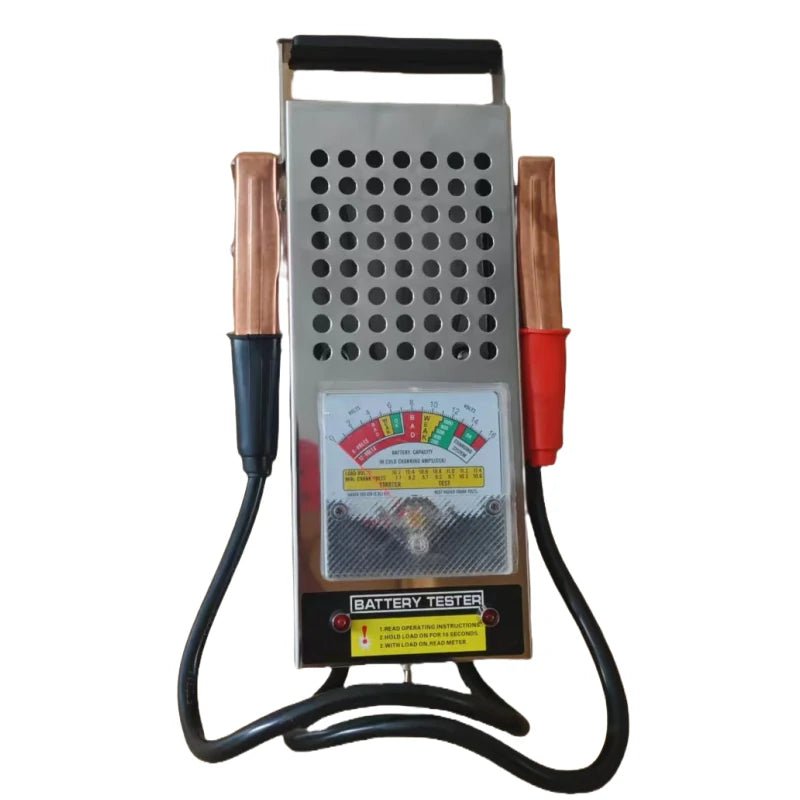

• Color-Coded Analog Dial: Large meter with Red / Yellow / Green / Good zones for instant visual diagnosis
• Built-in CCA Reference Chart: Battery Capacity in Cold Cranking Amps table printed on the meter face — match your battery’s CCA rating for accurate load test interpretation
• Battery Analysis Guide: Rear panel features a detailed Battery Analysis chart covering OK (Green Band), Weak or Bad (needle steady), and Weak or Bad (needle deflecting) conditions — plus Temperature Compensation table (+30°F, 0°F, -30°F)

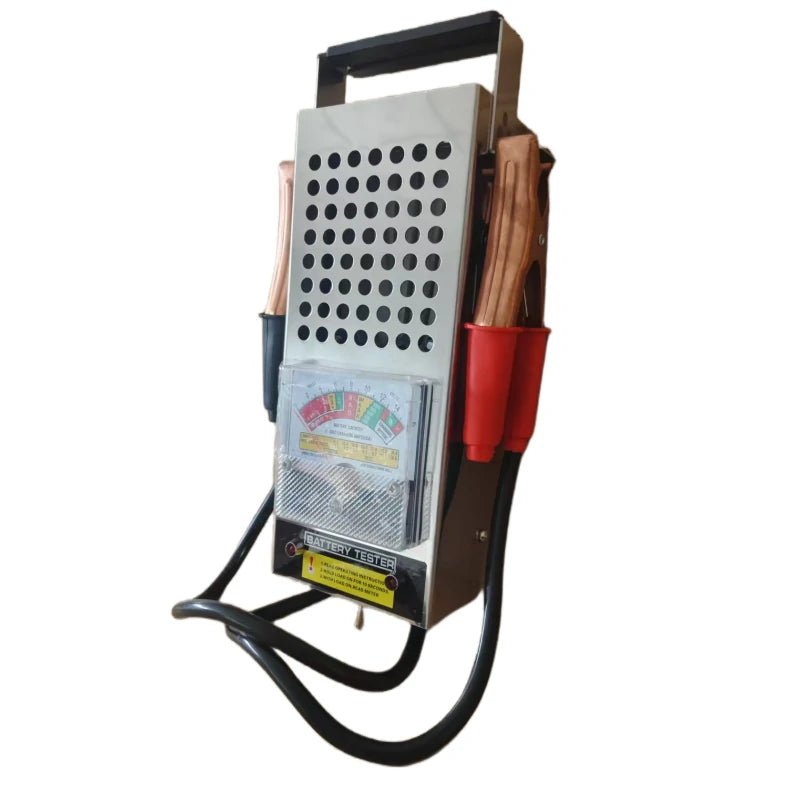

• Stainless Steel Housing: Lightweight yet durable perforated stainless steel body with integrated carry handle

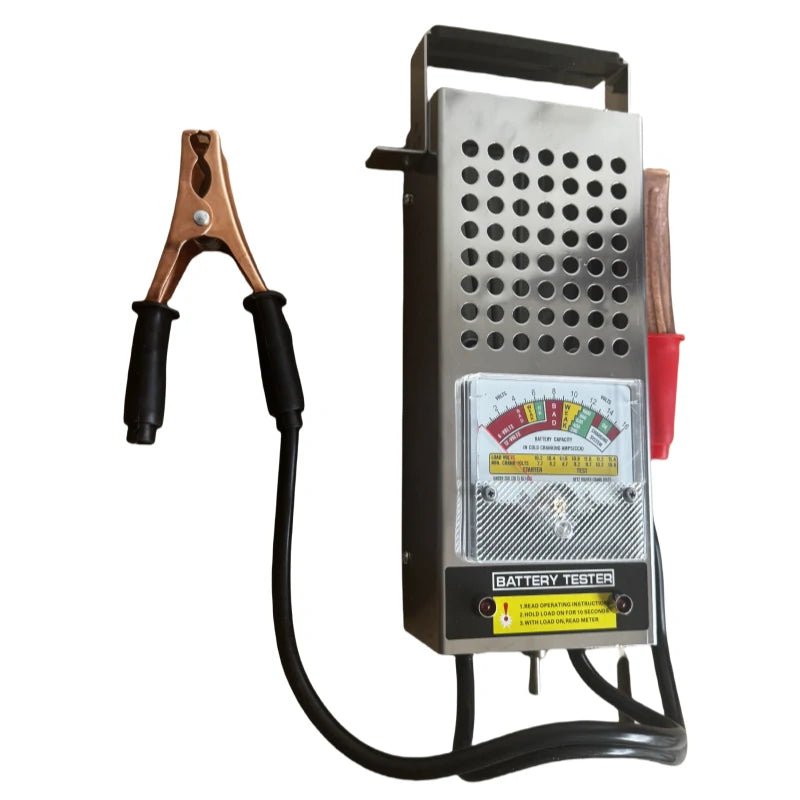

• Heavy-Duty Copper Clamps: Large copper alligator clamps with insulated red/black handles for secure, spark-free connection
• Handheld & Portable: Compact form factor — ideal for roadside diagnostics, garage use, and field service
• No Power Required: Fully passive design — no batteries or external power needed to operate
• 3-Point Operating Instructions: Printed on front panel for quick reference

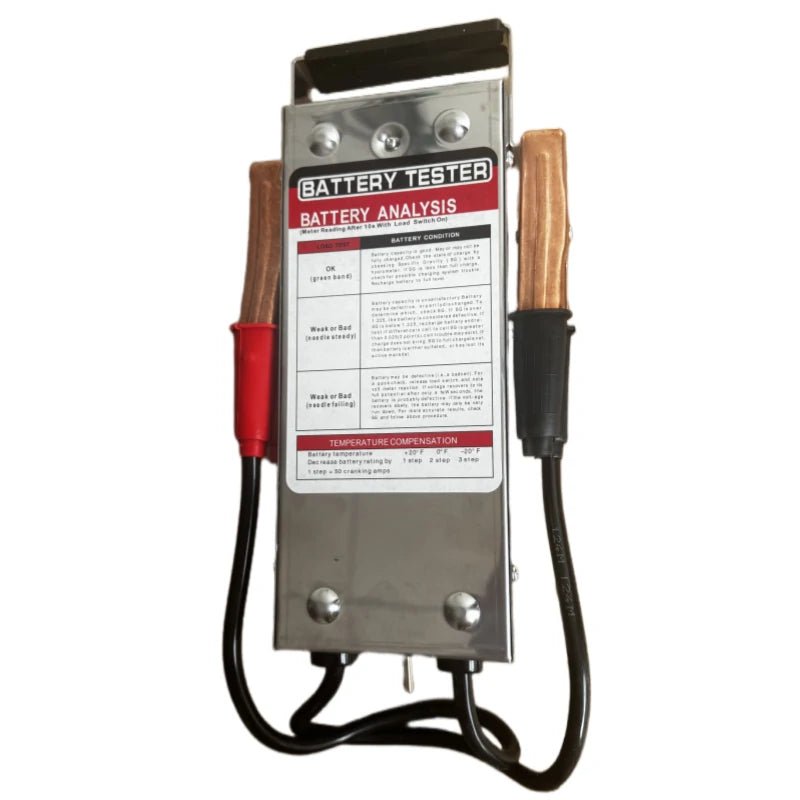

Battery Analysis Guide (Rear Panel)

• OK (Green Band): Battery voltage reads above the minimum threshold after 15-second load — battery capacity is good, no action needed
• Weak or Bad (needle steady): Battery may be defective or not fully charged — recharge and retest; replace if condition persists
• Weak or Bad (needle deflecting): Battery may be defective or have a bad cell — voltage drops during load; replacement recommended
• Temperature Compensation: Decrease battery rating by 1 step at 0°F and 2 steps at -30°F for accurate cold-weather diagnosis

Specifications

• Test Voltage: 6V / 12V
• Max Load: 200 Amps
• Display: Analog dial (color-coded zones)
• Housing: Perforated stainless steel with carry handle
• Clamps: Heavy-duty copper alligator clamps, insulated handles

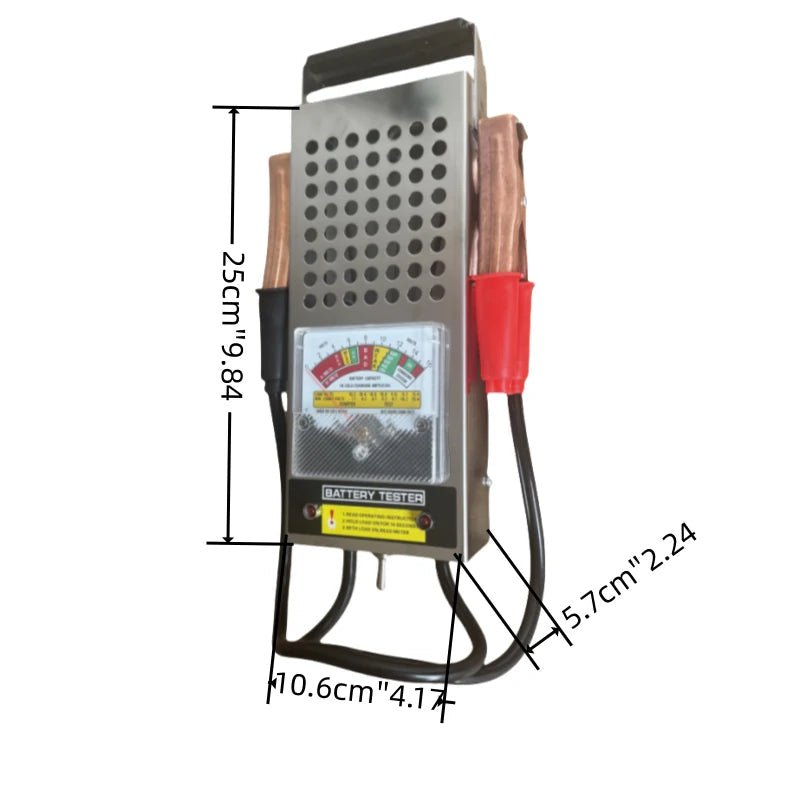

• Dimensions: 25 cm (H) × 10.6 cm (W) × 5.7 cm (D) / 9.84" × 4.17" × 2.24"
• Cable: Flexible heavy-gauge copper wire
• Power Required: None (passive design)

How to Use

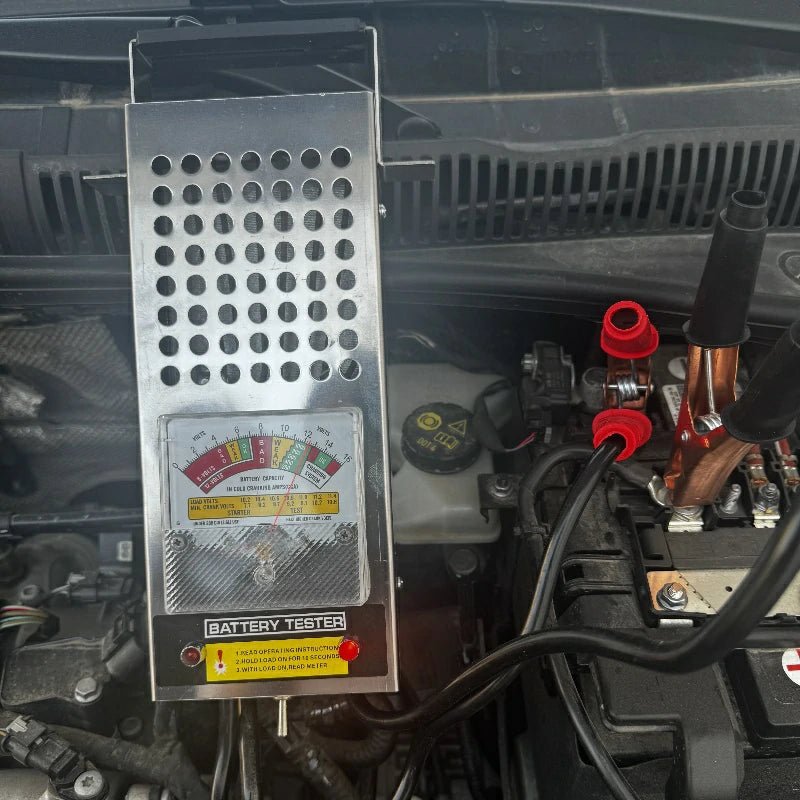

1. Connect clamps to battery terminals — red to positive (+), black to negative (−)
2. Read the open-circuit voltage on the analog dial (no load)
3. Press and hold the load button for up to 15 seconds
4. Read the needle position against the color-coded zones and CCA chart
5. Refer to the rear Battery Analysis guide for detailed diagnosis
6. Release and disconnect clamps

Applications

Ideal for cars, vans, RVs, trucks, and farm vehicles. Suitable for roadside assistance, automotive workshops, car dealerships, fleet maintenance, and professional mechanics. Compatible with all standard 6V and 12V lead-acid batteries.
